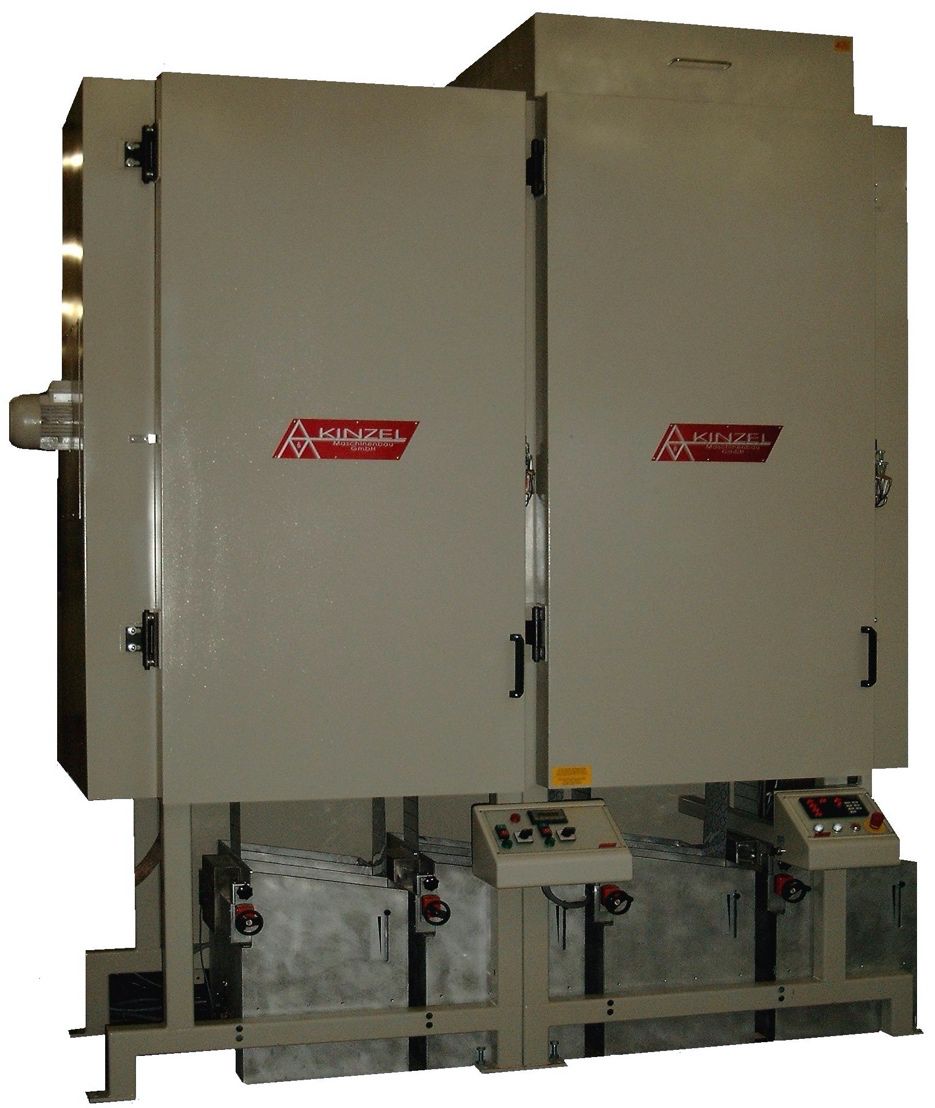

Vertical Dryer / Tower Dryer „DT"

• Hot-air-dryer with electrical heating (option: gas- or hot-oil)
• Max. Temperature 120°C, 160°C and more (adjustable)
• Short utility space
• Temperature control unit with display
• Different heat sections, separately adjustable
• Interior dryer in stainless steel
• Transport-vacuum-belts with automatic guide systems
• Loop control units
• Insulation of the external surfaces of the dryer
• Additional IR-heaters in the vacuum-chambers (option)
• Additional equipment of an UV-dryer (option)

Technical data:

Standard web width: 350, 520, 770, 1050, 1300 mm
Height: 3300, 5300 mm or special heights
Standard drying-length: 4, 8, 12, 16, 20, 24 meters
-> longer and special drying lengths on request
